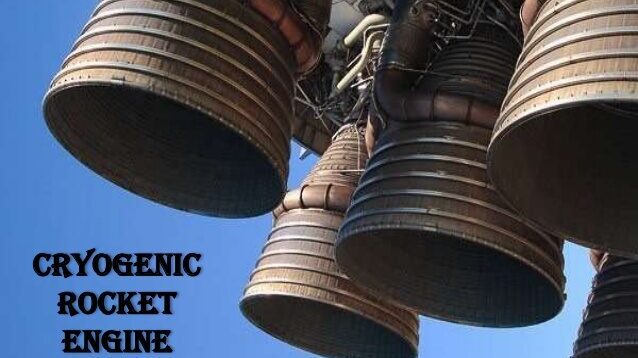

Cryogenic engines represent a critical component of advanced propulsion systems, particularly in the context of aerospace and space exploration. These engines utilize cryogenic fuels- extremely low-temperature liquid propellants- to achieve the high efficiency and thrust required for launching payloads into orbit or beyond. The term “cryogenic” originates from the Greek words “kryos” (cold) and “genic” (producing), reflecting the technology’s basis in extreme low-temperature phenomena. Operating on the principles of Newton’s Third Law of Motion, cryogenic engines burn liquid hydrogen (LH2) and liquid oxygen (LOX) in a combustion chamber to produce water vapor and an immense amount of energy, achieving a high specific impulse that is critical for space missions. The development of cryogenic technology began in the mid-20th century, spearheaded by nations like the United States and the Soviet Union during the space race. Early examples include the RL10 engine, utilized in the Centaur upper stage, and the RD-0120 engine of the Energia rocket. Key components of cryogenic engines include specialized storage tanks to maintain propellants at temperatures as low as −252.87°C for liquid hydrogen and −182.96°C for liquid oxygen, high-speed turbopumps for efficient propellant transfer, heat exchangers to manage thermal stresses, and precision-engineered nozzles for optimal thrust. While cryogenic engines offer unparalleled performance for space exploration, their development poses significant challenges, such as thermal management, material durability under extreme conditions, and high costs. Despite these obstacles, advancements in materials science, manufacturing techniques like 3D printing, and integration with reusable rocket systems are driving innovation. The applications of cryogenic engines span launching satellites, interplanetary missions, and supporting human exploration of the Moon and Mars, making them indispensable for the future of space exploration.
Working of Cryogenic engines
As already stated, Cryogenic engines function on the principle of high-efficiency propulsion using cryogenic propellants, namely liquid hydrogen (LH2) as fuel and liquid oxygen (LOX) as an oxidizer, which are stored and managed at extremely low temperatures. These engines exploit the high energy release from the combustion of hydrogen and oxygen to produce thrust, adhering to Newton’s Third Law of Motion. The working process begins with cryogenic storage tanks that are specifically designed to maintain propellants at temperatures below their boiling points (−252.87°C for LH2 and −182.96°C for LOX). These tanks are equipped with advanced insulation and sometimes active cooling systems to minimize heat ingress and prevent fuel boil-off. The propellants are fed into the combustion chamber through turbopumps, which are critical components operating at exceptionally high rotational speeds to ensure efficient fuel delivery under extreme pressure conditions. Within the combustion chamber, precise mixing of the fuel and oxidizer occurs, facilitated by injectors that distribute the propellants evenly to optimize the combustion process. This reaction generates water vapor and a tremendous amount of heat energy, resulting in the production of high-velocity exhaust gases. The exhaust gases are then expanded and accelerated through the engine’s nozzle, converting thermal energy into kinetic energy to generate thrust. The nozzle’s design, typically a bell or conical shape, is meticulously engineered to maximize thrust efficiency by ensuring that the exhaust gases exit at the optimal velocity and pressure. Heat exchangers within the engine system play a vital role in maintaining operational integrity by preventing critical components, such as the turbopumps and injectors, from freezing or overheating due to the extreme temperature differentials involved in handling cryogenic fluids.
A key feature of cryogenic engines is their high specific impulse, which measures the efficiency of the engine in terms of thrust produced per unit of propellant consumed. This high efficiency makes them particularly suitable for upper-stage applications in rockets, where reducing weight while maximizing performance is paramount. Despite their remarkable capabilities, cryogenic engines present significant engineering challenges, including the management of thermal stresses caused by the extreme temperature fluctuations, the development of materials that can withstand such conditions without degradation, and the precision required in the fabrication of components to ensure reliable performance. Innovations like 3D printing have facilitated the production of complex components with greater precision and reduced costs, while advancements in computational modeling have enhanced the ability to simulate engine performance under various conditions. Additionally, the integration of cryogenic engines into reusable rocket designs, such as those by SpaceX and Blue Origin, has further optimized their functionality and cost-effectiveness. Cryogenic engines have proven indispensable in a wide array of applications, from launching communication satellites and conducting scientific missions to enabling interplanetary exploration. As the aerospace industry continues to evolve, ongoing research into alternative cryogenic propellants like liquid methane and the potential use of in-situ resources on other celestial bodies promises to expand the scope and efficiency of cryogenic propulsion systems, reinforcing their status as a cornerstone of modern space exploration.
Structural components of a cryogenic engine
The structural components of a cryogenic engine are meticulously designed to handle extreme conditions, including high pressures, low temperatures, and intense thermal gradients. At the core of the engine are the cryogenic propellant tanks, which store liquid hydrogen (LH2) and liquid oxygen (LOX). These tanks are constructed using advanced materials such as aluminum alloys, stainless steel, or composite materials, which offer a balance of strength, low weight, and resistance to thermal stresses. Insulation is a critical aspect of the tank design, employing multilayer insulation (MLI) or vacuum-jacketed systems to minimize heat transfer and prevent boil-off losses. The tanks are integrated with pressure management systems, including vents and valves, to regulate the internal environment and ensure the safe storage and transfer of propellants. Connecting the tanks to the engine’s core are high-pressure fuel and oxidizer lines, which are often equipped with thermal protection to maintain the cryogenic state of the propellants during transfer. These lines lead to the turbopumps, which are among the most complex and vital components of the engine. Turbopumps operate at extremely high speeds, driven by gas generators or preburners, and are responsible for pressurizing the propellants and delivering them to the combustion chamber at precise flow rates. The materials used in turbopump construction, such as nickel-based superalloys, are chosen for their ability to withstand high temperatures and mechanical stresses.
The combustion chamber is another critical structural component, where the mixing and burning of liquid hydrogen and liquid oxygen occur. The chamber must endure extreme heat generated during combustion, necessitating the use of heat-resistant materials and active cooling mechanisms. A regenerative cooling system is commonly employed, where cryogenic fuel is circulated through channels around the chamber wall before injection, absorbing heat and maintaining structural integrity. Injectors, positioned at the top of the combustion chamber, ensure the precise mixing of propellants to optimize combustion efficiency. Downstream from the chamber is the engine nozzle, designed to convert thermal energy into kinetic energy and produce thrust. The nozzle’s shape, often a bell or cone, is tailored to maximize efficiency based on the specific mission profile. Advanced nozzles may include ablative materials or additional cooling systems to prevent erosion under high-temperature conditions. Surrounding these components are support structures, including mounting hardware and vibration dampeners, which secure the engine to the rocket and mitigate the effects of mechanical stresses during operation. Additional systems, such as heat exchangers and sensors, play auxiliary roles by maintaining thermal balance and providing real-time data on engine performance. Together, these structural components form a highly integrated and precise system, enabling cryogenic engines to achieve the high efficiency and reliability required for modern aerospace applications.
Advantages of cryogenic engines
The cryogenic engines have multiple advantages and these have been used successfully in various space missions. The primary advantages of these engines include,
High Efficiency: Cryogenic engines offer a high specific impulse, making them one of the most efficient propulsion systems available for space exploration.
Clean Combustion: The combustion of liquid hydrogen and liquid oxygen produces water vapor as the primary byproduct, making cryogenic engines environmentally friendly compared to other chemical propulsion systems.
High Thrust-to-Weight Ratio: Cryogenic engines generate significant thrust relative to their weight, enabling them to lift heavy payloads into orbit.
Suitability for Upper Stages: Their high efficiency and performance make cryogenic engines ideal for upper-stage applications in rockets, where maximizing energy and minimizing weight are crucial.
Reusable Technology: Modern cryogenic engines, like those used in SpaceX’s rockets, are designed for reuse, significantly reducing the cost of space missions.
Scalability: Cryogenic engine designs can be adapted for various applications, from small satellites to large interplanetary missions.
Advancements in Materials: Innovations in materials science and engineering have enhanced the durability and reliability of cryogenic engines, making them more robust against thermal and mechanical stresses.
Compatibility with Future Fuels: Cryogenic systems are adaptable to alternative fuels like liquid methane, which may become more viable for specific missions and in-situ resource utilization.
Enabling Deep Space Exploration: The efficiency and power of cryogenic engines make them essential for long-duration missions to the Moon, Mars, and beyond.
Proven Track Record: Cryogenic engines have a long history of successful use in major space programs, including Apollo, Space Shuttle, and modern commercial launches, demonstrating their reliability and effectiveness.
Limitations of cryogenic engines
Cryogenic engines, despite their remarkable efficiency and performance, come with several limitations that pose challenges to their widespread application. One of the primary limitations is the complexity of handling cryogenic propellants. Liquid hydrogen (LH2) and liquid oxygen (LOX) must be stored at extremely low temperatures (−252.87°C for LH2 and −182.96°C for LOX), requiring highly specialized storage tanks and insulation systems to prevent heat ingress and minimize boil-off losses. The need for such advanced technology increases both the cost and weight of the rocket, impacting overall mission economics. Furthermore, the handling and transfer of cryogenic fuels are fraught with operational risks, as temperature fluctuations can lead to the formation of ice blockages or leaks, potentially compromising engine performance. Another significant limitation is the relatively short duration for which cryogenic fuels can be stored without significant losses, making these engines unsuitable for missions requiring long-term fuel storage. The high volatility of cryogenic propellants also necessitates stringent safety protocols during fueling and operation, adding to the logistical and operational complexity.
Another critical limitation of cryogenic engines is their susceptibility to thermal and mechanical stresses during operation. The extreme temperature gradients between the cryogenic propellants and the combustion chamber create substantial thermal stress on engine components, necessitating the use of advanced materials and cooling systems. However, even with these safeguards, wear and tear on components such as turbopumps and injectors is inevitable, leading to increased maintenance and potential reliability issues. The intricacy of engine design, involving numerous moving parts and precise tolerances, makes manufacturing and maintenance a labor-intensive and costly process. Additionally, the need for highly skilled personnel to manage cryogenic systems further increases the operational cost. Cryogenic engines are also limited by their reliance on ground-based infrastructure, such as cryogenic storage facilities and fueling systems, which restrict their deployment to well-equipped launch sites. This dependency can hinder their use in remote or improvised launch scenarios. Moreover, while cryogenic engines excel in high-efficiency upper-stage applications, their low density and high-volume propellant requirements make them less suited for lower-stage applications where compactness and higher thrust are prioritized. Despite ongoing advancements, these limitations underline the challenges in optimizing cryogenic engines for broader use, highlighting the need for continued research and innovation to address these constraints.
Future of cryogenic engines
The future of cryogenic engines is intrinsically tied to the evolution of space exploration and the pursuit of sustainable propulsion technologies. As humanity pushes further into the cosmos, the demand for high-efficiency propulsion systems like cryogenic engines will continue to grow. One of the primary avenues for advancement is the development of next-generation materials and manufacturing techniques, such as additive manufacturing (3D printing), which allow for the creation of lighter, more durable components with complex geometries. These advancements can significantly reduce production costs and improve the reliability of cryogenic engines, making them more accessible for a broader range of missions. The integration of artificial intelligence and machine learning into the design and operation of cryogenic engines promises to optimize performance, enhance safety, and predict maintenance requirements more accurately. Another critical area of focus is the use of alternative cryogenic propellants, such as liquid methane, which offers advantages in terms of storability and potential in-situ production on Mars. The adaptability of cryogenic systems to such fuels positions them as a cornerstone for future interplanetary missions, where the ability to refuel using local resources could drastically reduce mission costs and complexity. Additionally, the ongoing trend towards reusable rocket technology is set to benefit from further innovations in cryogenic engines, as improved durability and efficiency will enhance their economic viability and operational flexibility.
Looking further ahead, the role of cryogenic engines in deep-space exploration and advanced propulsion concepts cannot be overstated. Missions to outer planets, asteroids, and potentially interstellar targets will require propulsion systems capable of delivering sustained thrust with high efficiency. Cryogenic engines, with their proven performance, are likely to remain central to these endeavors. Research into hybrid propulsion systems that combine cryogenic technology with emerging methods, such as electric or nuclear propulsion, could open new possibilities for long-duration missions. Moreover, as lunar and Martian habitats become more feasible, cryogenic engines will play a vital role in transporting materials and crew, leveraging resources like water ice to produce hydrogen and oxygen fuel on-site. This aligns with the broader vision of creating a sustainable space economy where cryogenic propulsion systems facilitate exploration while minimizing reliance on Earth-based supplies. Governments, private companies, and international collaborations are expected to continue investing heavily in cryogenic technology, ensuring that it remains at the forefront of aerospace innovation. With the convergence of cutting-edge science, engineering, and exploration goals, cryogenic engines are poised to be an enduring and transformative force in the next era of space exploration.
